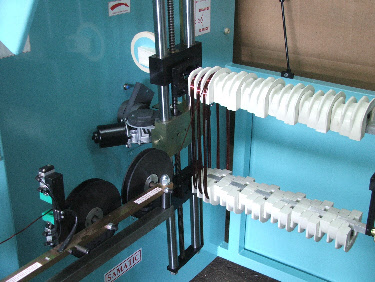

In AC winding, SAMATIC will wind any shape coils, but most importantly- ALL concentric coils  are wound with the SAMATIC Adjustable Concentric Wizard Jig

With one size fits ALL, there is  no need anymore to convert concentric coil designs to Lap, the coils are always perfect and the insertion process is so smooth and fast

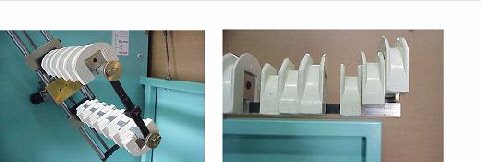

SA12  concentric former

Quickly adjusted to the desired

STEP and then mounted on the

Machine by simple sliding

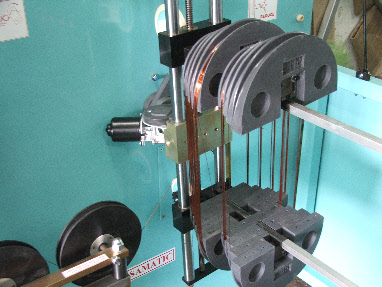

SA6  concentrics former set is  mounted on SAMATIC’s spindle by simply sliding each group

Every element in each group can be adjusted individually. This way,  there are many possible steps you can use with the same set of forms. Setting

Is fast and easy with the

Concentric Wizard Jig
