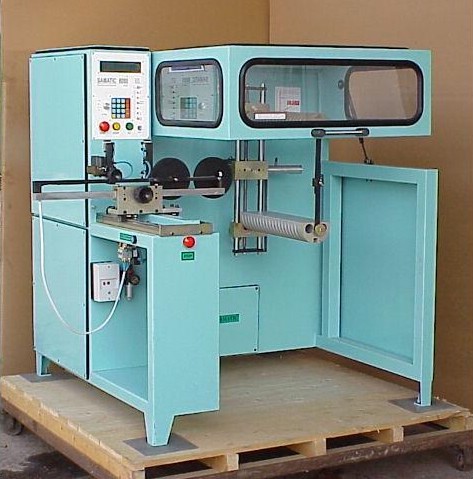

SAMATIC 8080

Automatic Random Coil Winding Machine



Automatic Wire Guidance in a manner that assures perfect layer winding, Guaranteed no crossovers



Automatic Wire Tensioning works up to 2" total wire width on hand



Ease of Coil insertion into slots due to zero crossovers, a major time savings with consistent high quality of coils



Sleeves Released Automatically wherever and whenever needed to save valuable connection time (continuity  winding)



Adjustable Concentric with Instant Set Up Jig. Each set of forms fits thousands of coil combinations



Learning Mode- Machine "learns" any standard or custom former with a simple key-pad setting



Instant Set Up Time (30-120 seconds)with a very short exchange time between forms for:



















Automatic Coil Sizing





Quick Taping Procedure in 10 seconds or less, all 18 coils are taped



Safety Guard prohibits contact with moving parts



Data Bank- Machine remembers all jobs and coil specs for automatic set up



PC Adapter is built in with the Swim - 100,000 rewind jobs Data/Re-Design/Analysis software



Alarm signals "out-of-wire" and stops ma

DIAMOND

CONCENTRIC



DC Field Coils and Transformer Coil

ROUND NOSE
